ELTIM CS-40ps, Ausgang/Stromstufe + Netzteil Modul

Tot 180Wrms/4Ω, inkl. on-board Netzteil.

ELTIM CS-40ps, Ausgang/Stromstufe + Netzteil Modul
149,00 MwSt% ist Länder abhängig! € 123,14 ohne MwSt.
Hersteller ELTIM
ArtikelcodeCS40ps
0 Sterne in 0 Bewertungen Schreiben Sie eine Rezension

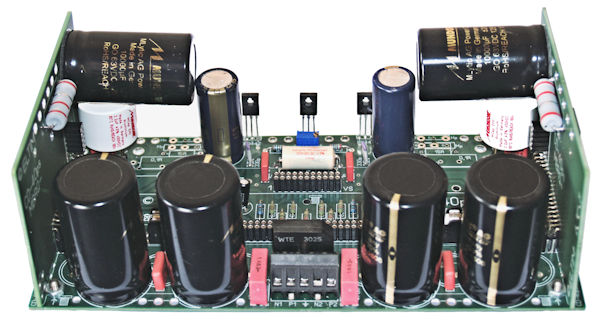

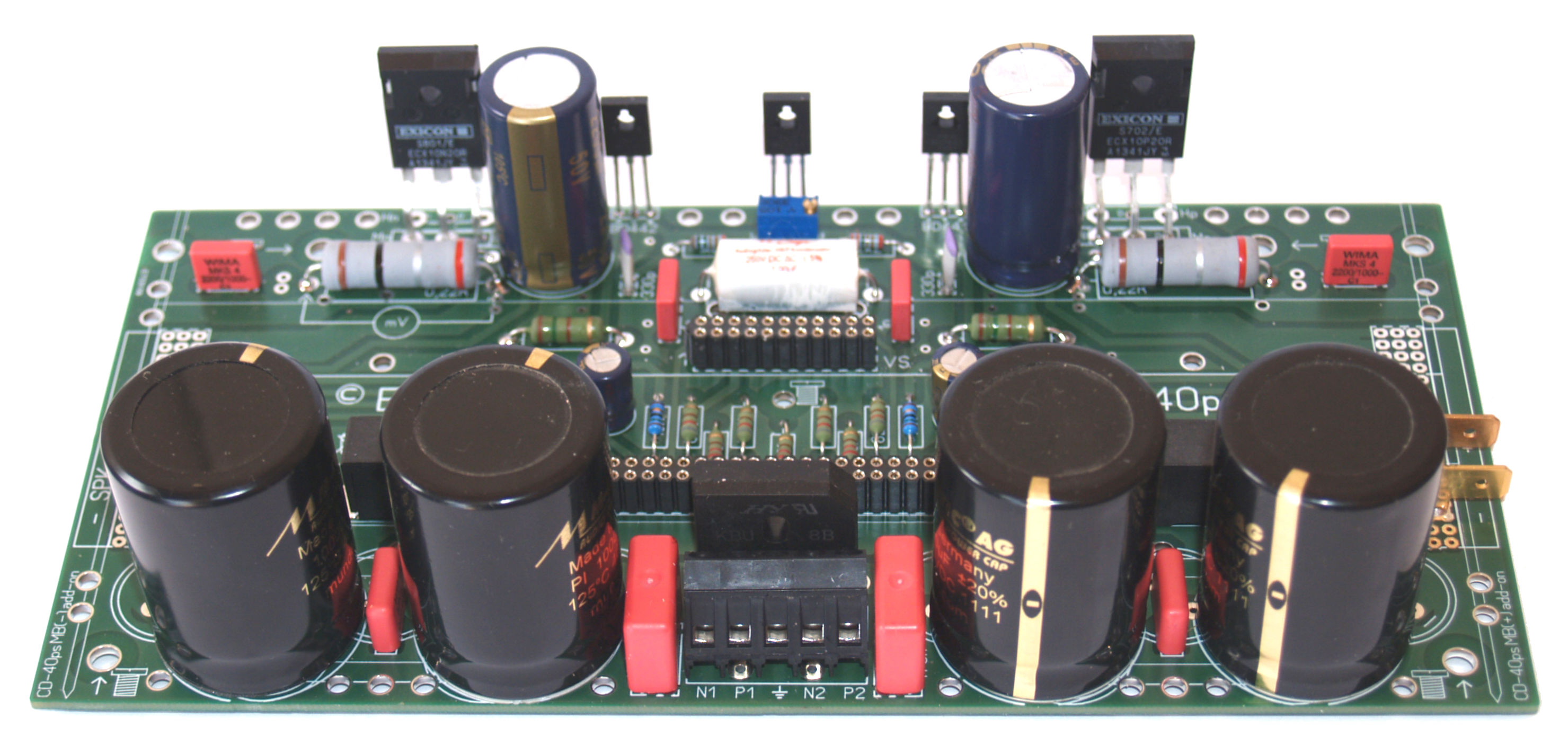

This CS-40ps power (current) stage PCB highlights:
  • Select the power EXICON Mosfets of your choice
  • L-mounted to heat sink, which is electrically separated from the PCB.
  • Power capacitor location close to the power transistors.
  • On board rectifier and power supply capacitor bank (not included!).
  • Capacitor bank with 2x2 high-grade, low impedance Ø25/30mm MUNDORF MLGO types (pitch 10mm) possible.
  • For low profile / cost effective solutions a capacitor bank of 2x5 Ø16mm, pitch 7,5mm caps possible.
  • For cost effective and/or low power solutions even two single Ø25x50mm axial capacitors can be mounted.
  • RF-interference blocking capacitors in strategic positions.
  • All resistors (MOX 1%) are long life Vishay components or equivalent.
  • Current driven high power feedback in the centre of PCB with multiple paralleled resistors, reducing noise.
  • Speaker output and extra Mosfet/IGBT connector both left and right.
  • No output coil nor capacitor in the output line resulting in way better impulse and detail behaviour.
  • Protection circuit or VS-regulator board connector.
  • Separate Current Stage and Voltage Stage power rails.
  • Gold plated beryllium copper, milled connectors, with multiple pin connections.
  • Speaker signal for signalling/protection purposes at all connectors.
  • PCB position to mount an NTC/PTC at centre, connected to both horizontal connectors.
  • Idle current can be controlled and adjusted externally by a DC-signal coming from the centre connector.
  • Dimensions: 200x104x35/50mm, depending on capacitor types used.

CS-40ps Ausgangsstufe + Netzteil Modul, gebaut nach Ihren Anforderungen.
Die Qualität Ihres Moduls können Sie teilweise selbst bestimmen. Wählen Sie im Menü oben aus verschiedenen Komponenten.
Jedes CS-Modul muss mit einem unserer VS-Module ergänzt werden; nur zusammen bilden sie eine komplette Endstufe.

Ausser diese Bauteile brauchen sie auch noch ein geeigneter Transformator mit zwei sekundär Wicklungen, 150% von max. Ausgangsleistung des Verstärkers.




Mit unsere CD-40ps add-on Modulen könnten Sie schöne und Kompakte Monoblocks bauen.
Diese Modulen werden montiert in die Konnektoren links und rechts von CS-40ps:

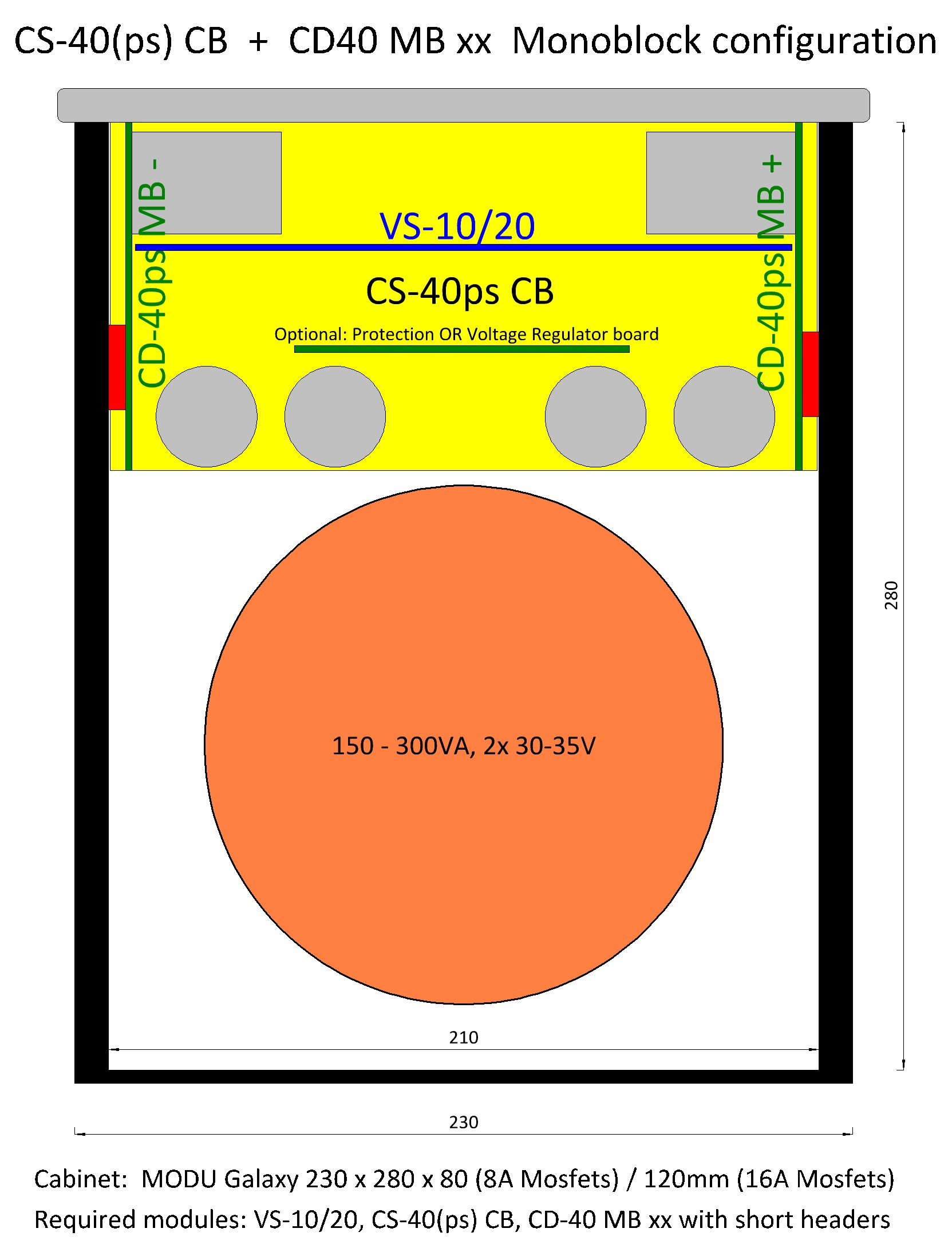

Montiere dann ein Paar unsere CD-40ps MB Modulen und baue es zb. in ein Galaxy 230x280x880/120mm Gehäuse:

Die power Mosfets sitzen am hinterseite des CD-40 MB add on Modulens,
genug gekült von die MODU Galaxy Flanken.
Die Dimensionen unseres Pakkets stimmt überein mit MODU Galaxy 280x230mm Gehäuse.
8A Mosfets past in 80mm und 16A Mosfets in 120mm hohe Gehäuse.
Wir haben auf  X-Fi audio show Veldhoven (NL) 2019 mit 8A Versionen demonstriert:
